GAS GENSETS - 285kVA / 315kVA - Power Express Generators

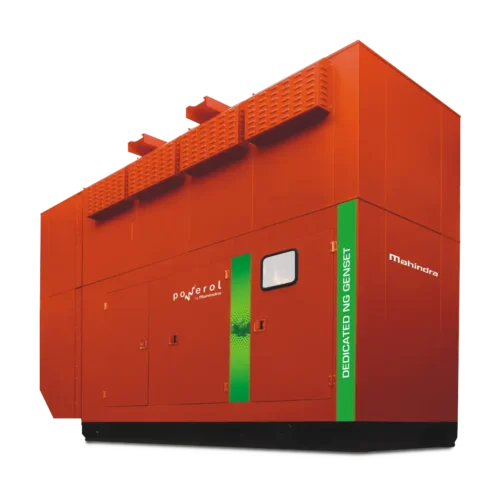

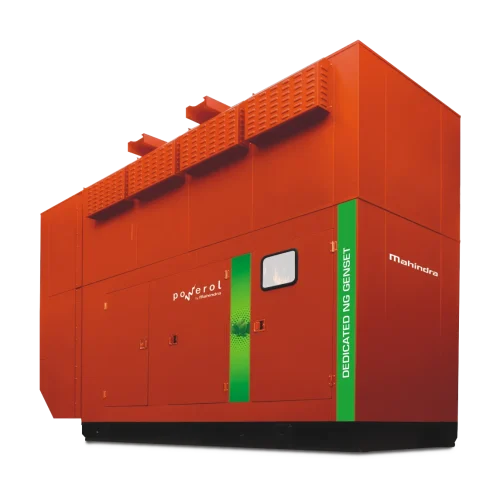

GAS GENSETS – 285kVA / 315kVA

Features:

Compat Design

Its Recovery Time, Easily The Best In Its Category, Guarantees A Seamless Switchover To The Back-Up Power. Moreover, Its Effective Governing System Controls The Voltage Fluctuations, Thus Ensuing Complete Safety Of Your Equipment.

Large Fuel Tank

Its got one of the most preferred engines fitted inside – the Mahindra Powerol engine. Compact and low on vibration, this engine has the smallest footprint as compared to other engines of identical ratings. Making the DG set apt even for roof-mountings.

Longer Engine Life

Each and every Powerol DG set complies with the most stringent noise and emission norms stipulated by the Central Pollution Control Board of India (CPCB).

Low Maintenance Cost

It’s got other advantages too. Like, it’s transported through the Mahindra Transport Solutions Group. It is installed and commissioned through a Mahindra authorized dealer. It even comes with an annual maintenance contract. It is most fuel efficient in its class It offers zero-leak engines Manual and AMF control panel options are also available.

Preferred by All

A Powerol DG set can be used in the Telecom, Defence and Railway sectors. It can also be installed at places like petrol pumps, hospitals, super markets, banks and construction sites.

Description

Silence is Golden: India’s most silent Genset brand

Mahindra Powerol’s ‘Spectro’ series of diesel gensets is one of the most silent gensets manufactured by the brand. It has sturdy wheels and a long handle which allows easy mobility of the genset.

Assurance

Power fluctuations can affect your business as well as day to day operations. Diesel gensets act as back up against power cuts providing you with uninterrupted power supply. Mahindra Powerol has a wide network of authorized dealers & skilled service engineers spread across India. Customers just need to dial our Toll-free number – 1-800-419-1999 & service will be available at the doorstep.

Over 400 sales and service touch points.
Easy Finance schemes available.
Fuel Efficient Engines.

Appliances that can run on 285kVA Gensets

2 Televisions

2 Air Conditioners

2 Wi-Fi Modems

6 Light Bulbs

2 Printers

2 Laptops

1 Coffee Maker

Segments used for:

Bungalows, Small Offices, Small Shops

Technical Specifications

Parameter	DG Model
Genset Prime Rating (kVA) *	285 kVA
Duty (Standby/ Prime)	Prime
Power Rating @ 100% kWe (in KW)	228 KW
No. of Phases	3 Ph
Output Voltage (V)	415
Power Factor (lagging)	0.8
Current (A)	396.4
Frequency (Hz) & RPM	50/1500
Governing Class	G2 as per ISO 8528 part 5
Genset dimensions (L x W x H) in mm	5225 X 1700 X 3248 ( inside Silencer)
Genset Weight (Kg) Approx.	6500
Engine Specification
Make	Generac
Model	G14.2 L
Rated Power at 100%Load (HP)	370
Aspiration	Turbocharged, Aftercooled
No. of cylinders	6
Bore x Stroke (mm)	135 X 165
Displacement (Ltr)	14.2
Fuel consumption @ 75% load (kg/hr)	33.9
Fuel consumption @ 100% load (kg/hr)	42.8
Starting system	24 V DC Electrical
Lube oil specification	API CG4 15W40
Total lubrication system capacity(Ltr)	34.4
Lube oil consumption @ full load$	0.062
Lube oil change period (hrs.)	500
Radiator coolant capacity (Ltr)	34.4
Alternator
Make	LS
Enclosure Type	IP 23
Voltage regulation	+/- 1%
Class of insulation	Class H
Maximum Unbalanced Load across Phases(%)	25

Above specifications are subject to change without notice due to continuous technical developments.
* A tolerance value of +-5% will be applicable on declared power values
. ** A tolerance of +5% shall be applicable on fuel consumption values on account of product to product variation due to engine & + 3% of tolerance due to alternator product to product variation
Gas Density : 0.667 Kg/m3

Appliances that can run on 315kVA Gensets

4 Televisions

3 Air Conditioners

3 Wi-Fi Modems

12 Light Bulbs

3 Printers

4 Laptops

2 Coffee Maker

Segments used for:

Bungalows, Small Offices, Small Shops

Technical Specifications

Parameter	DG Model
Genset Prime Rating (kVA) *	315 kVA
Duty (Standby/ Prime)	Standby
Power Rating @ 100% kWe (in KW)	252 KW
No. of Phases	3 Ph
Output Voltage (V)	415 V
Power Factor (lagging)	0.8
Current (A)	438.2
Frequency (Hz) & RPM	50/1500
Governing Class	G2 as per ISO 8528 part 5
Genset dimensions (L x W x H) in mm	5225 X 1700 X 3248 ( inside Silencer)
Genset Weight (Kg) Approx.	6500
Engine Specification
Make	Generac
Model	G14.2 L
Rated Power at 100%Load (HP)	370
Aspiration	Turbocharged, Aftercool
No. of cylinders	6
Bore x Stroke (mm)	135 X 165
Displacement (Ltr)	14.2
Fuel consumption @ 75% load (kg/hr)	41.0
Fuel consumption @ 100% load (kg/hr)	54.3
Starting system	24 V DC Electrical
Lube oil specification	API CG4 15W40
Total lubrication system capacity(Ltr)	34.4
Lube oil consumption @ full load$	0.062
Lube oil change period (hrs.)	500
Radiator coolant capacity (Ltr)	34.4
Alternator
Make	LS
Enclosure Type	IP 23
Voltage regulation	+/- 1% with 4% engine Governing
Class of insulation	Class H
Maximum Unbalanced Load across Phases(%)	25
